The X-Arcade Arcade2TV-XR Configuration Tool, a Windows-based application, enables users to tailor the keys and actions of their Arcade2TV-XR. This segment guides you through the software's interface and usage.



Downloading and Installing the Software



1. Download: Please download the latest software and firmware. (Software download link)

2. Installation: Follow the on-screen instructions in the installer to complete the software setup.

3. Initialization: Launch the X-Arcade Arcade2TV-XR Configuration Tool. Upon connecting the Arcade2TV-XR, the software will display the driver mode and relevant UI.

4. Customization: You can now begin customizing the key mappings across different modes for a personalized gaming experience.


Software Features and Functions:


  • Firmware Upgrade: Use this feature to update the Arcade2TV-XR's firmware.
  • Factory Reset: Resets the Arcade2TV-XR to its original settings, erasing all custom mappings.
  • Save Configuration: After remapping controls, use this to save your configurations.
  • Product Name: Indicates the driver name of the Arcade2TV-XR.
  • Current Mode: Displays the active driver mode of the Arcade2TV-XR.
  • Firmware Version: Located in the bottom left corner, it shows the current firmware version of the Arcade2TV-XR.


Remap in Keyboard Mode


Steps:

1. Input Key Selection: Select an INPUT key in section 1 for remapping.

2. Assigning Keyboard/Mouse Key: Click on a keyboard key in section 2 or a Mouse key or movement direction in section 3 to assign it to the chosen INPUT. Repeat steps 1 and 2 to remap additional keys as needed.

3. Save Configuration: Once remapping is complete, click 'Save Configuration' to store the new mappings in the firmware.



Remap in DINPUT Mode

Steps:

1. Input Key Selection: In section 1, select the INPUT key you want to remap.

2. Assigning Gamepad/Mouse Action: Click on a gamepad or mouse action in section 3 or 2 to assign it to your chosen INPUT key. Complete this step for each key remap. Repeat this process to remap additional keys as necessary.

3. Saving Changes: After completing the remapping, click 'Save Configuration' to save your changes. Your new key  mappings will be stored in the firmware.



Remap in Xinput Mode



Currently not available.


Firmware Downloads for Arcade2TV-XR/Tankstick VR


At X-Arcade, we continuously gather feedback and work to improve both our hardware and user experience. As part of our commitment to supporting our customers, we release firmware updates to address bugs and introduce enhancements.


Available Firmware Versions:


v2.22 (Stock Version)

    •    Overview: This is the default firmware version for the Arcade2TV-XR, offering standard functionality.

    •    Use: Ideal for general usage with no special requirements.

    •    Download: Download v2.22 Firmware


v2.23(1/2025)- FOR PINBALL USE

    •    Overview: This version is optimized for playing Pinball FX games with enhanced compatibility.

    •    Use: Best for users playing Pinball FX or Pinball FX2 VR on their VR systems.

    •    More Details: Using X-Arcade Tanksticks and Arcade2TV-XR with Meta Headsets for Pinball FX and Pinball FX2 VR

    •    Download: Download v2.23 Firmware


v2.25(2/2025)

    •    Overview: The latest firmware includes a new XINPUT feature that allows you to trigger the XBOX/GUIDE/MENU button by holding down the select button for 3 seconds. This feature is especially useful for Steam Deck or gaming PC setups to access the menu during gameplay.

    •    Use: Recommended for users who want enhanced control options, particularly on gaming PCs or Steam Deck setups.

    •    Download: Download v2.25 Firmware


v2.23_3 (7/2025)- FOR PINBALL USE

    • Overview: This firmware introduces a specialized XINPUT mode tailored for Pinball FX and other pinball games across PC and major consoles. It features a dedicated single-player XINPUT mapping optimized for use with Brook’s Wingman adapters (XB2/FGC/XB3) via direct USB connection—supporting consoles such as Nintendo Switch, PS4/5, and Xbox Series X/S. This eliminates the need for using a DB9 or 2-in-1 adapter.

    • Use: Recommended for users who primarily play pinball games on consoles or PC and want plug-and-play XINPUT support with correct button mapping and no additional adapter chains. Ideal for turning the Arcade2TV-XR/ Tankstick VR into a dedicated single-player gamepad controller.

    • Download: Download v2.23_3 Firmware


v2.27 (10/2025) – THIS ADDS A PINBALL & SOLO MODE

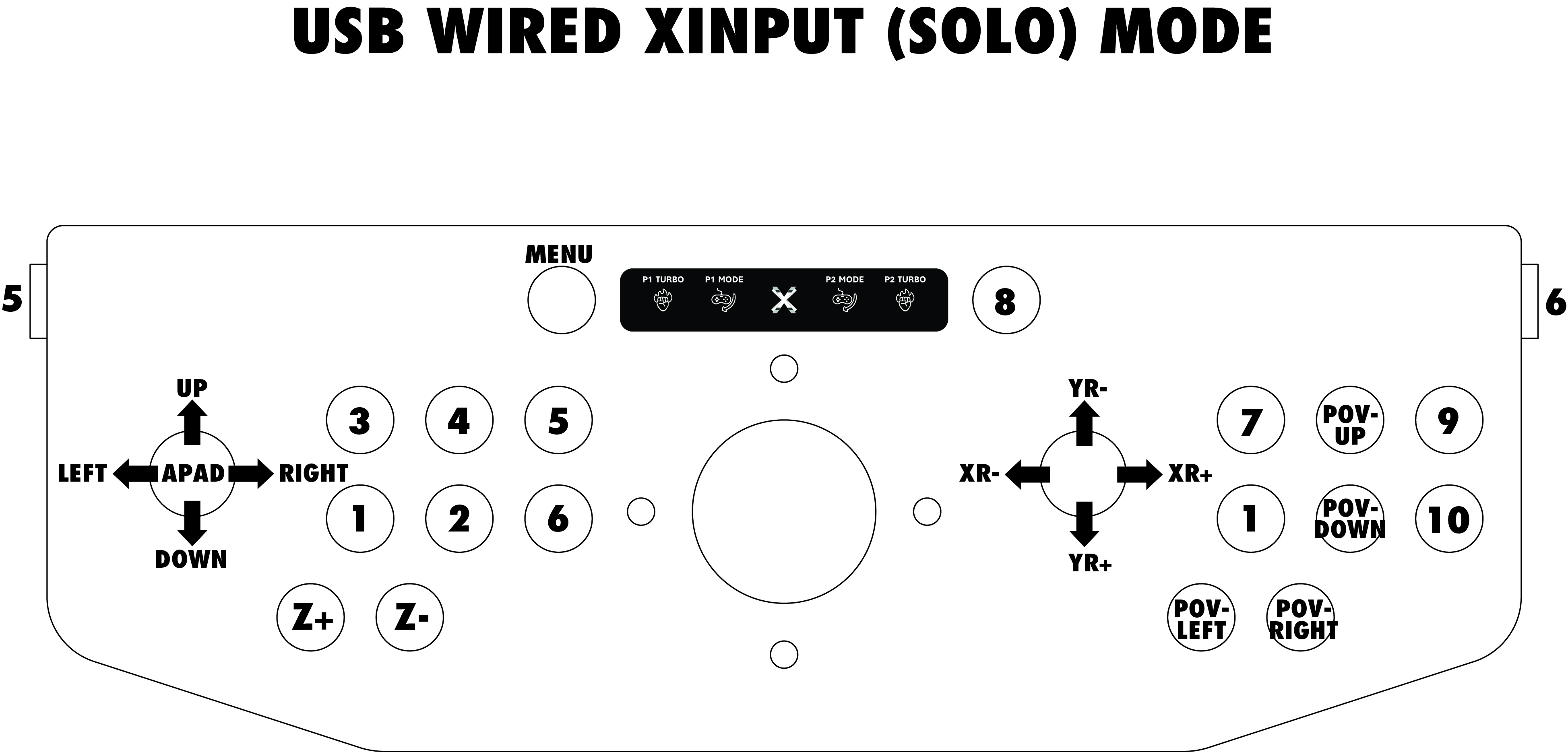

• Overview: This firmware introduces a new “Pinball/Solo Mode” (blink purple) which allows you to play pinball titles and standard solo-player arcade games without needing to switch between separate firmware versions. It supports a single-player XINPUT mapping that works directly with any Brook adapter—eliminating the need for the 2-in-1 adapter. This makes it a more cost-effective option for users who don’t require a two-player setup.

• Use: Recommended for users who play a mix of pinball games and solo-player arcade titles across platforms and want a single firmware that covers both. Ideal if you’re using the X‑Arcade Arcade2TV-XR / Tankstick VR as a dedicated gamepad controller for pinball and arcade experiences—directly through a Brook adapter, no extra adapter chain needed.

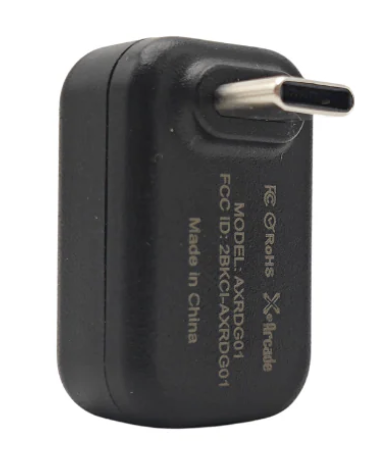

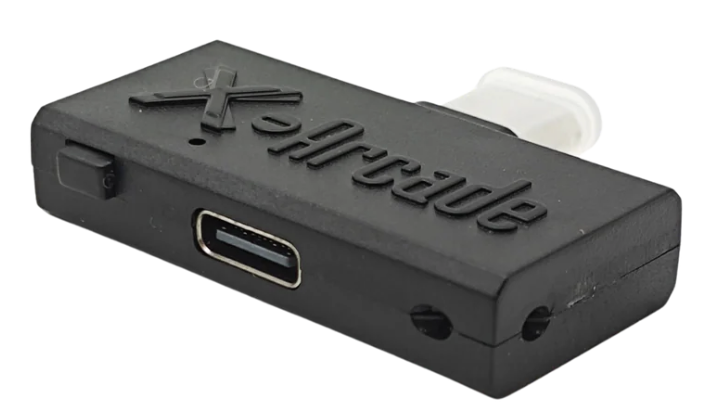

• Important Notice: This firmware is only compatible with the V1 bluetooth dongle. The new dongle will not work with this version. We will release a separate firmware when the new dongle is available.

• Download: Download v2.27 Firmware

• Layout & Mode Indicator: LED will blink purple when in Pinball/Solo Mode.

• Mode Switching: To switch modes, press and hold the P1 MODE button on the touch panel for about 5 seconds, then the unit will cycle between modes.

• Upgrade Reminder:

  • Make sure the unit is connected via USB and powered throughout the process.

  • Do not unplug the unit during firmware upgrade — this may brick the unit.

  • After starting the upgrade, wait until the unit fully reboots. A reboot indicates the upgrade succeeded—waiting about 5 minutes is best.

  • If the unit fails to reboot or powers off mid-update, the firmware may not install properly and you risk needing recovery.


How to Upgrade Firmware:


IMPORTANT NOTICE: Make sure the unit is set to Keyboard or DINPUT mode before upgrading the firmware, as it cannot be updated while in XINPUT mode.


    1.    Download the Firmware File: Download the firmware file in .BIN format (select the version you need).

    2.    Connect Your Device: Plug your Arcade2TV-XR or Tankstick VR unit into your PC.

    3.    Open the Software: Launch the Arcade2TV-XR Configuration Tool.

    4.    Upgrade the Firmware:

    •    Press the Firmware Upgrade button at the bottom left corner of the software window.

    •    Select the firmware file you just downloaded and click Open.

    5.    Wait for the Upgrade:

    •    The software will begin flashing the firmware onto your device. Do not disconnect the device during the upgrade process.

    •    The unit will reboot and reconnect to your PC automatically.

    •    Once the software detects the upgraded device, the firmware upgrade is complete and your device is ready for use.

Note: Disconnecting the device during the firmware upgrade can cause the device to become unresponsive or “bricked.”


How to Roll Back or Force Firmware Upgrade:


If you encounter an issue or need to revert to the stock firmware (v2.22), follow these steps to perform a force firmware upgrade:

    1.    Press and Hold the bottom-left button of P1 while connecting the controller’s USB to your PC.

    2.    Use the Firmware Upgrade Tool: Use the firmware upgrade tool to flash back to version 2.22.


By following these steps, you can safely restore your device to the stock firmware if needed.
