Thanks to a partnership with Zen Studios, Pinball FX VR now supports native X-Arcade integration—no firmware updates or setup required.
✅ Step-by-Step Setup:
1. Power on your Arcade2TV-XR using the provided USB-C cable and power adapter.
• ⚠️ Do not connect the unit to your PC—this will activate USB mode. For VR use, it needs to stay in wireless mode.
2. Insert the wireless dongle into your Meta Quest headset’s USB-C port.
3. Verify the connection by rolling the trackball—if you see a mouse cursor moving inside the headset, you’re good to go.

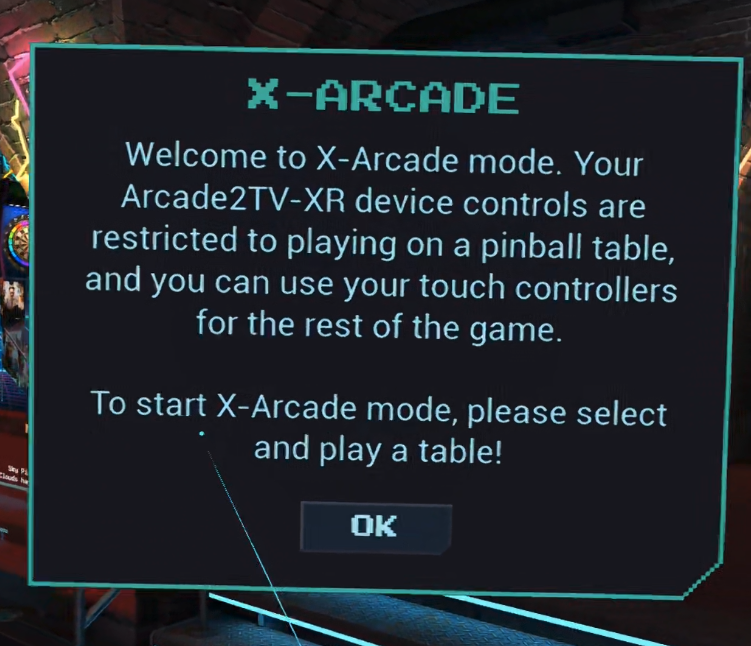

4. Launch Pinball FX VR (make sure the dongle is connected before launching the game to activate X-Arcade mode).
5. In X-Arcade mode, your physical Arcade2TV-XR will be mapped to the virtual pinball cabinet, delivering a truly immersive experience.
How to Map Your Virtual Table to the Physical Arcade2TV-XR

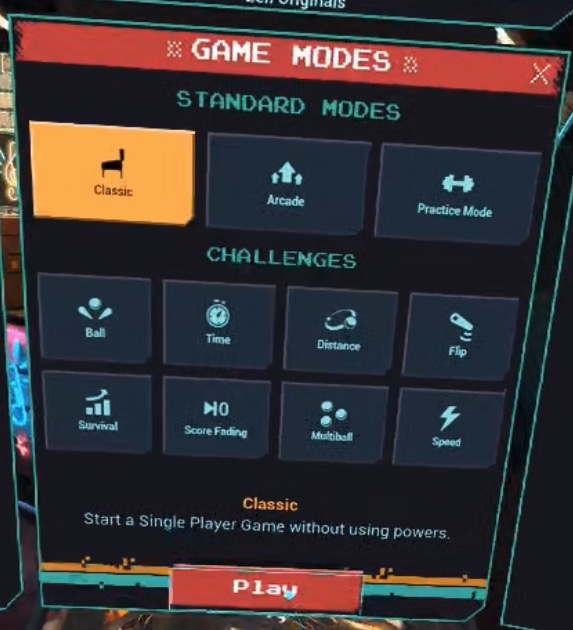

1. Use your right controller to select a pinball table.
2. Hit the red “PLAY” button.

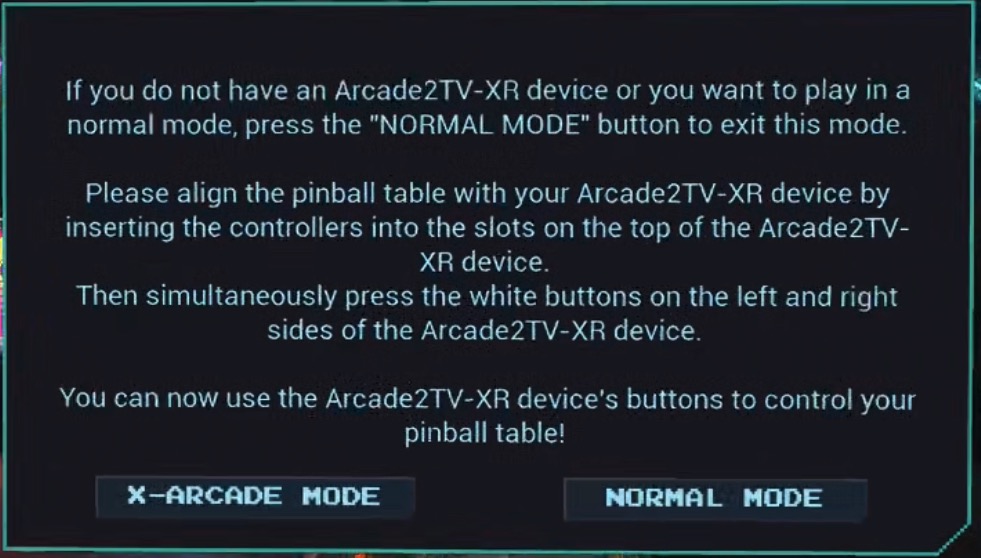

3. A popup will ask if you’d like to use the X-Arcade device — select “X-Arcade”.
4. The environment will switch to transparent passthrough mode, allowing you to see your physical unit.
5. Insert both Quest controllers into their designated slots on the Arcade2TV-XR (press all the way down for alignment).
6. Press the left and right flipper buttons on the Arcade2TV-XR to complete the mapping.
7. Start playing!
Mapping in Mixed Reality Mode:
1. Enter MR mode and confirm that X-Arcade mode is enabled.
2. Place your virtual pinball table in the room using passthrough view.
3. Use your controller to select the table and hit “PLAY”.
4. Choose “X-Arcade” when prompted.
5. View your physical setup through passthrough.
6. Insert both controllers into the unit’s slots.
7. Press both flipper buttons to complete alignment.
8. Enjoy pinball in MR mode!

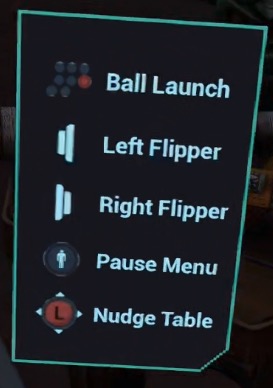

In-Game Tips:

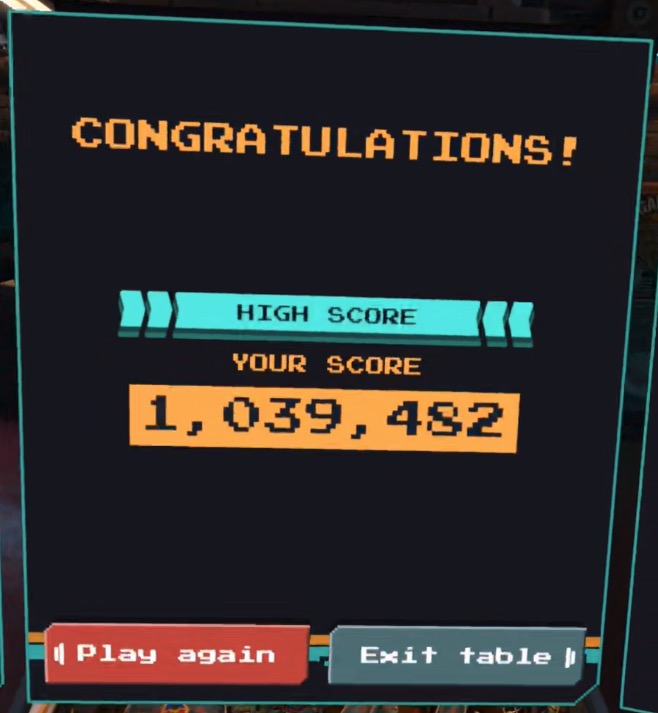

• After a game ends, use the flipper buttons to choose “restart” or “exit.”
• If the alignment drifts, long-press the right controller’s menu button while both controllers are docked.
• All mini-games within the pinball tables use the left flipper to select and plunger button to confirm.
• Use the left joystick on your Arcade2TV-XR to nudge the table.
If you run into any issues, feel free to reach out to us at support@xgaming.com. We’re here to help make your VR pinball journey as fun and seamless as possible.
Let’s play!
